DANOPOL FR HS 1.2

Synthetic membrane synthetic plasticized PVC.
Product variations:
Watertightness
ETE 10/0054 ETE 10/0054
Datasheet
Share

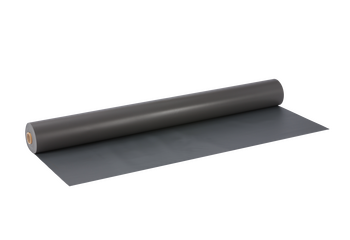

DANOPOL FR HS 1.2 DARK GREY is a synthetic PVC plasticized membrane, reinforced with polyester net carrier. Designed for flat roof waterproofing, U.V. resistant.

Presentation

  • Length (cm): 2000
  • Width (cm): 180
  • Thickness (mm): 1,2
DANOPOL FR HS 1.2

Technical Data

Concept Value Standard
Longitudinal elongation at break (%) > 50 -
Transversal elongation at break (%) > 70 -
External fire behaviour Broof (t1) - Broof (t2) - Broof (t3) - Broof (t4) EN 13501-5
Longitudinal & transversal dimensional stability < 0.3 EN 1107-2
Humidity resistance factor 20.000 ± 30% EN 1931
Mass per unit area (nominal) (kg/m²) 1.5 -
Permeabilidad al vapor de agua (m) 20.000 ± 30% EN 1931
Plegabilidad a baja temperatura (ºC) < -30 EN 495-5
Reacción al fuego E EN 13501-1
Resistance to static loading (kg) > 50 EN 12730 Método B
Resistance to root penetration Pasa EN 13948
Longitudinal & transversal tensile strength (N/5cm) > 1000 EN 12311-2 Método A
Longitudinal resistance to tearing (nail shank) (N) > 200 -
Transversal resistance to tearing (nail shank) (N) > 200 -
Overlaps resistance (Shear of overlaps) (N/50mm) > 800 EN 12317-2
Overlaps resistance (Peeling of overlap) (N/50mm) > 250 EN 12316-2
Hazardous substances PND -

Addtitional Technical Data

Concept Value Standard
Visible defects Pasa EN 1850-2
Nominal minimum thickness 1.2 (-5%; +10%) EN 1849-2
Mass (kg/m²) ~ Standard EN 1849-2 -
Mass (kg/m²) 1.5 (-5%; +10%) -
Loss of elongation at break (UV 5000 h) < 10< 10 EN 1297, EN 12311-2EN 1297, EN 12311-2
Loss of plasticizers (mass change at 30 days) (%) < 4.5 EN ISO 177
Flatness (mm) < 10 EN 1848-2
Straightness (mm) < 50 EN 1848-2

Environmental Information

Concept Value Standard
Recycled content afterword the consumer (%) NDP -
Recycled content before the consumer (%) NDP -
Manufactured in Fontanar -
