POLYDAN PLUS FM 180-60/GP FRBR ELAST
High Performance SBS elastomeric 5,6 kg/m² capping sheet. Mechanically fixed.
Product variations:
BBA 10/4787 (2)
ETE 06/0058

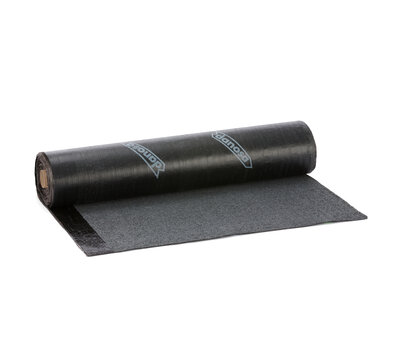

POLYDAN PLUS F.M 180-60/GP FRBR ELAST. is a waterproofing bituminous sheet with self-protected surface of 5.6 kg/m². Composed of a reinforced and stabilized polyester felt reinforcement, covered on both sides with SBS modified bitumen mastic. On the upper side of the sheet, slate in grey (black) colour is used as protective material. The anti-adhesive material used on the lower side is polyethylene film.
Instruction for Use
- 1. Fist of all, center the plinth on the deck ceiling opening.
- Domes could be broken.
- Expansion joint effect will be nullified.
6. Place finish cads over the screws.
2. Fix the plinth to the deck with steel lag screws:r- Three units per meter on the plinth’s perimeter heel. Over concrete slab supports, domes will be installed with concrete screws, washers and Ø6mm lag screws. Over steel deck systems with thermal insulation and waterproofing membrane, domes will be installed with steel screws directly to the structure. If the skylight has to be place before the steel deck, an auxiliary frame welded to the main structure will be required.
3. Install the waterproofing membrane covering the exterior plinth surface.
4. Remove the dome’s protector film.r Place the inferior dome over the plinth and over the.
5. Place the inferior dome over the plinth structure and install the self-adhesive washers on the inferior dome top surface, matching them with spaces to be drilled. Screw the top methacrylate dome, finishing the whole skylight. Do not tight screws in excess, because:
Notice
- The information contained in this document and any other advice provided, are given in good faith, based on DANOSA's current knowledge and experience when products are properly stored, handled and applied, in normal situations and in accordance with the recommendations of DANOSA. The information applies only to the application (s) and the product (s) to which reference is expressly made. In case of changes in the parameters of the application, or in case of a different application, consult the DANOSA Technical Service before using the DANOSA products. The information contained herein does not exonerate the responsibility of the building agents to test the products for the application and intended use, as well as their correct application in accordance with current legal regulations. The product images used in our communications are indicative and may differ slightly in color and aesthetic appearance in relation to the final product.Orders are accepted in accordance with the terms of our current General Sales Conditions.DANOSA reserves the right to modify, without prior notice, the data reflected in this documentation.Website: www.danosa.com E-mail: info@danosa.com Telephone: +34 949 88 82 10
Presentation
- Length (cm): 800
- Width (cm): 100
- Thickness (mm): 4.0
- Product code: 141926
Technical Data
| Concept | Value | Standard |
|---|---|---|
| Mass per unit area (nominal) (kg/m²) | 5.6 | - |
| External fire behaviour | Broof(t1);Broof(t3) | UNE-EN 1187; UNE-EN 13501-5 |
| Durability flexibility | -5 ± 5 | - |
| Creep durability (ºC) | 100 ±10 | UN-EN 1110 |
| Elongation at break longitudinal (%) | 45 ±15 | UNE-EN 12311-1 |
| Elongation at transverse break (%) | 45 ±15 | UNE-EN 12311-1 |
| Water vapour resistance factor (μ) | >20.000 | UNE-EN 1931 |
| Low temperature flexibility (ºC) | <-15 | UNE-EN 1109 |
| Reaction to fire | E | UNE-EN 11925-2; UNE-EN 13501-1 |
| Resistance to static loading (kg) | >20 | UNE-EN 12730 |
| Resistencia a la difusión (GPa.s.m²/kg) | 400 ± 50 | - |
| Resistance to root penetration | No pasa | UNE-EN 13948 |
| Longitudinal tensile strength (N / 5cm) | 900 ± 250 | UNE-EN 12311-1 |
| Transverse tensile strength (N / 5cm) | 650 ± 250 | UNE-EN 12311-1 |
| Longitudinal resistance to tearing (nail shank) (N) | 280 ± 30 | UNE-EN 12310-1 |
| Transversal resistance to tearing (nail shank) (N) | 320 ± 20 | UNE-EN 12310-1 |
| Resistance to impact, A (mm) | >2000 | UNE-EN 12691 |
| Joint Strength: Welding Shear | 650 ± 250 | UNE-EN 12317-1 |
| Hazardous substances | PND | - |
| Resistance to root penetration | No pasa | UNE-EN 13948 |
Addtitional Technical Data
| Concept | Value | Standard |
|---|---|---|
| Adhesion of granules (%) | <30 | UNE-EN 12039 |
| Dimensional stability at elevated temperatures (longitudinal) (%) | <0.3 | UNE-EN 1107-1 |
| Dimensional stability at high temperatures (transversal) (%) | <0.3 | UNE-EN 1107-1 |
| Creep resistance at high temperatures (ºC) | >100 | UN-EN 1110 |
Environmental Information
| Concept | Value | Standard |
|---|---|---|
| Post-consumer recycled content (%) | 35 | - |
| Manufactured in | Fontanar - Guadalajara (España) | - |
