Separating wall between noisy premises

  • Acoustic Insulation: Rock wool / High-density membrane
Share

Noise protection

MAD4

Noise protection
9562DIV3

Partition wall

  • 1 12.5 mm plasterboard
  • 2 M.A.D.® acoustic insulation
  • 3 12.5 mm laminated plasterboard
  • 4 Plasterboard structure
  • 5 15 mm plasterboard
  • 6 Rock wool acoustic insulation

Advantages

  • Airborne noise insulation DnTw between 55 - 65 dB
  • Shifts system resonance frequencies to less audible frequencies
  • The acoustic membrane improves the insulation at low frequencies of the laminated plaster system
  • Absorbent at medium and high frequencies
  • The fifth plate ensures the tightness of the system to recessed installations
  • Its thermal and acoustic insulation capacity can be improved by increasing the thickness of the structure and mineral wool
  • Light system better for structural strength with low thickness and faster execution
  • Application

  • Gyms
  • Cinemas
  • Radio studios
  • Auditoriums, theaters, music schools: central buildings and music booths

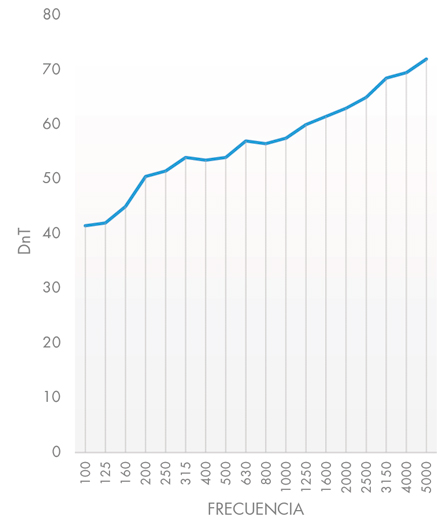

  • Graph

    Technical Requirements

    FunctionProductDescriptionPropertyValue
    Anti-resonant acoustic insulationM.A.D.® 4High-density sheet.ΔRA between rigid elements4 dBA
    Acoustic insulation absorbent at medium and high frequenciesLana de rocaRock wool panel.RA40 - 61 dBA

    Recommendations

    Note: This sheet is included in an acoustic box-in-box system.

    Unit of Work

    Acoustic insulation of plasterboard separating wall formed by:
    12.5 plasterboard fixed to the structure by means of screws; Acoustic membrane 4 mm thick M.A.D.® 4 stapled to the first board; fixing to the structure of the second plasterboard 12.5 mm thick by means screws; placement of absorbent material in its interior based on rock wool of 70 kg/m³ density; 15 mm thick laminated plasterboard fixed with screw to the 1st structure; separated at least 1 cm from the 15 mm plasterboard, placement of the second structure; placement of absorbent material in its interior based on rock wool of 70 kg/m³ density; 12.5 mm plasterboard fixed to the structure by means of screws; Acoustic membrane 4 mm thick M.A.D.® 4 stapled to the first board; fixing to the structure of the second plasterboard of 12.5 mm thickness by means screws, fully sealed and installed, ready to apply the finishing.

    System documentation download DIV3

    You must enter your details to download

    Personal data

    Project data

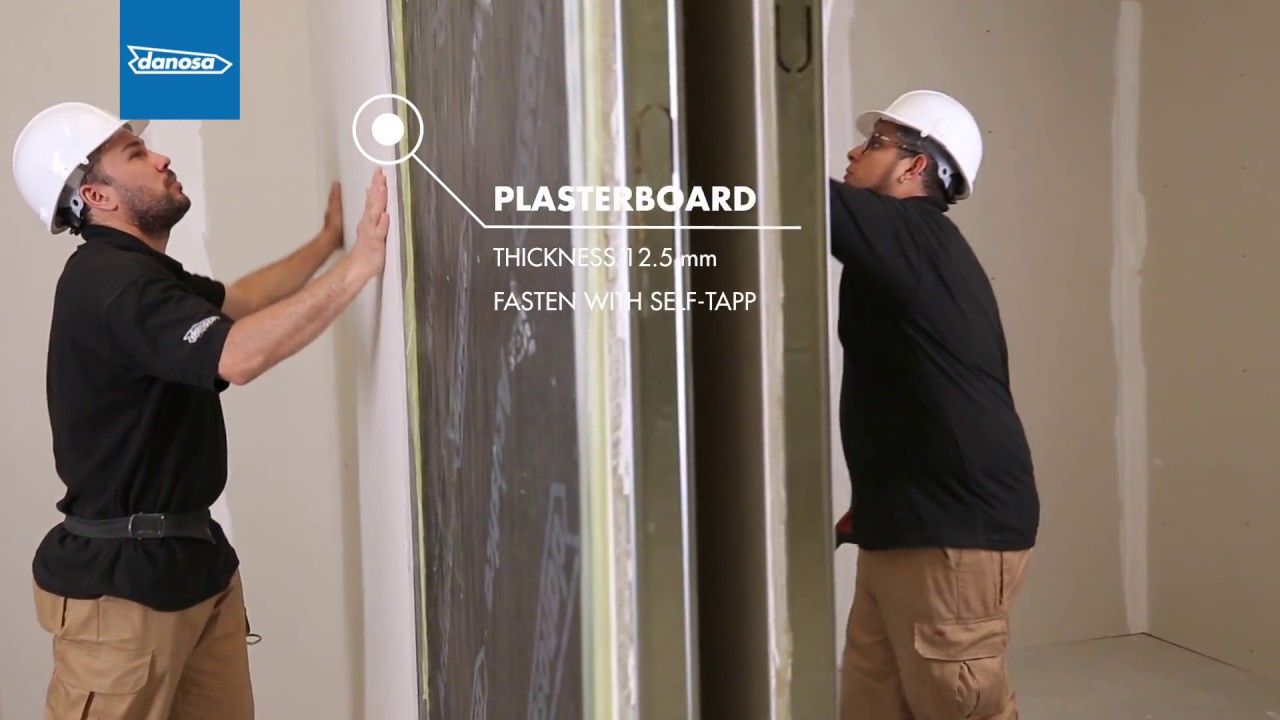

    Installation video
