TEF3

Ceiling acoustic hanger system for musical premises with emission > 90 dBA

  • Acoustic Insulation: High-density bituminous sheet / Cross-linked polyethylene with acoustic membrane and rock wool
Share

Noise protection

MAD4

Noise protection

SONODAN PLUS AUTOADHESIVO.

Noise protection
9570TEF3

Suspended ceiling

Advantages

  • Acoustic insulation achieved DnTA > 70 dB.
  • Plastering ensures the tightness of the floor.
  • Mass-spring-mass system with absorption at low, medium and high frequencies.
  • The chamber material dampens impulsive noises of low frequencies.
  • The membrane between boards displaces the resonance frequencies of the system towards less audible frequencies and improves isolation at low frequencies.
  • Its thermal insulation capacity can be improved by introducing mineral wool.
  • The cavity may be the minimum allowed by the premises.
  • The spring acoustic hanger prevents excitations of low, medium and high frequencies.
  • Light system providing better results and speed of execution.
  • Application

  • Machine rooms in residential buildings: hotels, hospitals, teachers and offices.
  • Music venues: pubs, karaokes, party rooms...
  • Graph

    Technical Requirements

    FunctionProductDescriptionPropertyValue
    Anti-resonant acoustic insulationM.A.D.® 4High-density bituminous membrane.ΔRA between rigid elements4 dBA
    Acoustic insulation at impulse noise of low, medium and high frequenciesSONODAN® PLUS Self-adhesivePanel composed of a first layer of cross-linked polyethylene foam and high density membrane and a second layer of high density membrane and mineral wool.RA52 - 65 dB

    Recommendations

    Note: This sheet is included in an acoustic box-in-box system.

    Unit of Work

    Ceiling acoustic hanger system for acoustic isolation of musi¬cal premises with an emission > 90 dBA formed by:

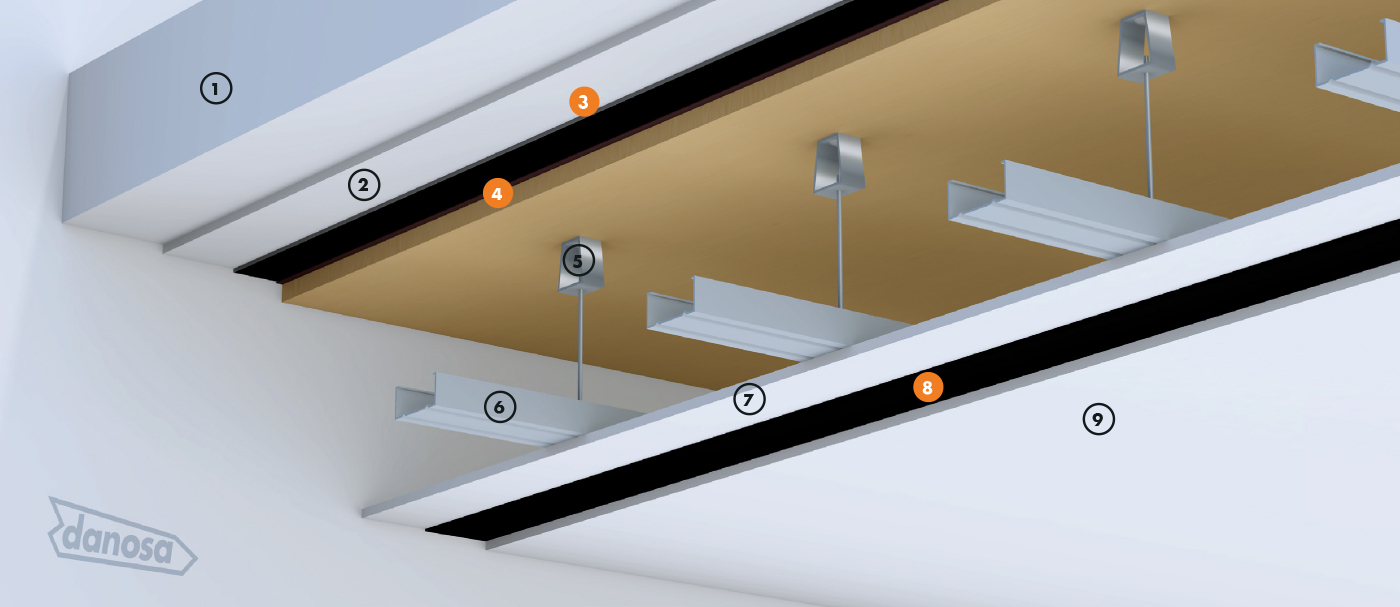

    Plastering of the roof; Multi-layer insulation for low, medium and high frequencies of 40 mm thickness, SONODAN® PLUS SELF-ADHESIVE mechanically fixed with 40 insulation fixing; Spring acoustic hanger attached to the beam with a steel anchor plug and Ø 6 rod; plasterboard structure of double profiles; placement of 12.5 plasterboard fixed to the struc¬ture by means screws; 4 mm thick Danosa M.A.D.® acoustic membrane fixed to the board by means of staples; fixing to the structure of the second plasterboard of 12.5 mm thickness by means screws, fully sealed and installed, ready to apply decorative suspended ceiling to carry installations.
