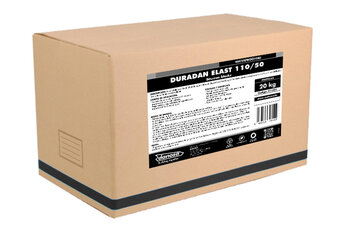

DURADAN ELAST 110/50
Non-toxic, hot-applied highly elastomeric modified bitumen waterproofing product.
Product variations:
Non-toxic, hot-applied highly elastomeric modified bitumen waterproofing product. DURADAN ELAST 110/50 bonds and seals reinforced bituminous roofing membranes onto continuous substrates, for a full structural bond. DURADAN ELAST 110/50 is a system component in structural hot melt applications such as inverted waterproofing systems, other protected waterproofing systems and living roof systems.
Instruction for Use
- Substrate should be dry and clean from grease, dirt, debris or any other contaminants.
- Prime surface with bitumen primer hm in accordance with DANOSA UK instructions and allow to dry.
- Remove DURADAN ELAST 110/50 from cardboard packaging and heat to 170-180°C in a thermostatically controlled bitumen boiler.
- Pour hot melt liquid DURADAN ELAST 110/50 in accordance with DANOSA UK instructions, ensuring a minimum mass of 3.00 kg/m².
Warning
- Heating DURADAN ELAST 110/50 to temperatures in excess of 180°C can destroy the polymer modification and should be avoided.
Handling, storage and preservation
- Boxes should be stored upright in a cool, dry area inside original packaging. Do not store in direct sunlight. Block stacks should be no higher than 3 blocks.
Notice
- The information contained in this document and any other advice provided, are given in good faith, based on DANOSA's current knowledge and experience when products are properly stored, handled and applied, in normal situations and in accordance with the recommendations of DANOSA. The information applies only to the application (s) and the product (s) to which reference is expressly made. In case of changes in the parameters of the application, or in case of a different application, consult the DANOSA Technical Service before using the DANOSA products. The information contained herein does not exonerate the responsibility of the building agents to test the products for the application and intended use, as well as their correct application in accordance with current legal regulations. The product images used in our communications are indicative and may differ slightly in color and aesthetic appearance in relation to the final product.Orders are accepted in accordance with the terms of our current General Sales Conditions.DANOSA reserves the right to modify, without prior notice, the data reflected in this documentation.Website: www.danosa.com E-mail: info@danosa.com Telephone: +34 949 88 82 10
Presentation
- Product code: 411031
Technical Data
| Concept | Value | Standard |
|---|---|---|
| Elastic recovery (%) | > 89 (5 min); > 99 (60 min) | DIN EN 13398 |
| Min application temperature (ºC) | 170 | - |
| Max application temperature (ºC) | 180 | - |
Addtitional Technical Data
| Concept | Value | Standard |
|---|---|---|
| Penetration at 25 ºC, 100 g y 5 s (0.1 mm) | 50 - 75 | DIN EN 1426 |
| Softening point (ring and ball) (ºC) | 95 - 110 | DIN EN 1427 |
| Breaking point (ºC) | < -30 | DIN EN 12593 |
