TRA2

Independent wall for premises with sound emission 85-90 db with night time

  • Acoustic Insulation: High-density acoustic membrane with cotton / High-density bituminous sheet / Rock wool
Share

MAD4

ACUSTIDAN

Noise protection
12200TRA2

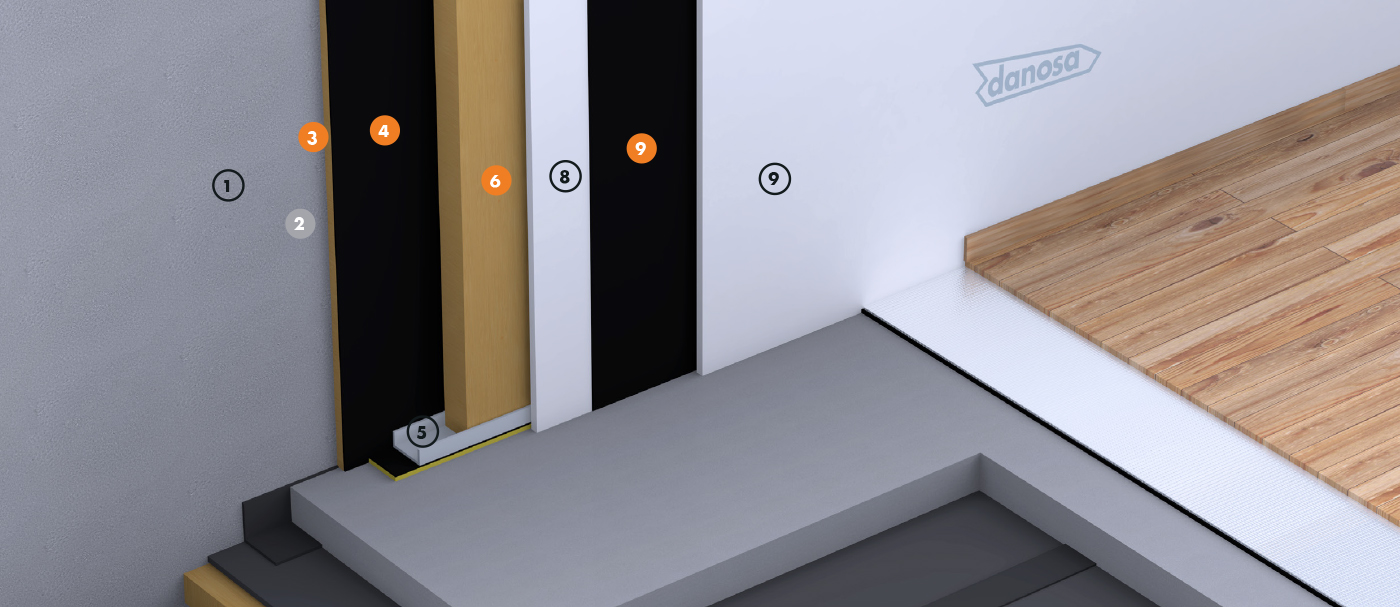

Independent wall

Advantages

  • Airborne noise insulation achieved at R’A,tr > 63 dB, giving sufficient isolation to meet the levels of emission in common areas.
  • The ARGOCOLA ELITE 500 when applied on two sides ensures the fixation of the ACUSTIDAN®, the waterproofing of the wall and its acoustic tightness.
  • Combined absorption into cavity at low, medium and high frequencies.
  • Shifts system resonance frequencies to less audible frequencies.
  • The acoustic membrane improves the insulation at low frequencies of the plasterboard system.
  • Its thermal and acoustic insulation capacity can be improved by increasing the thickness of the mineral wool.
  • Light system providing better results with low thickness and faster execution.
  • Application

  • Premises with sound emission between 85-90 dB and nighttime: breweries, restaurants, cocktail bars.
  • Classroom of music in schools.
  • Music schools: individual instrument booths.
  • Clubs in shopping centers.

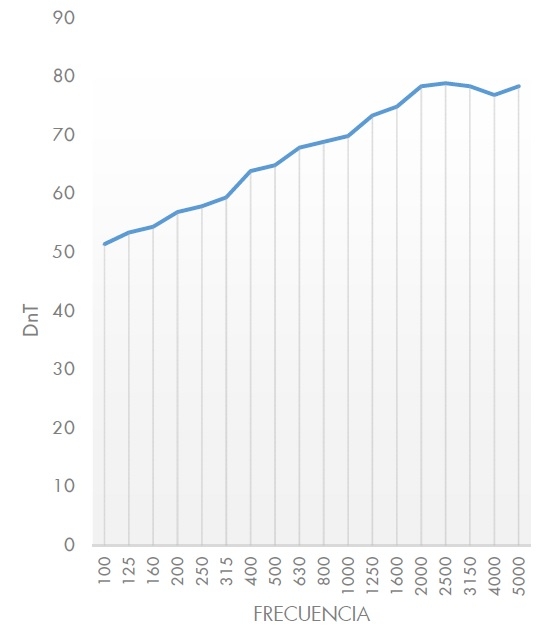

  • Graph

    Installation video
