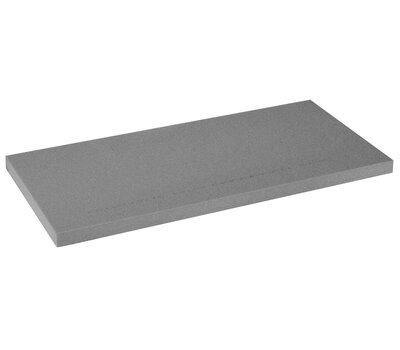

DANOTHERM EPS GRAPHITE BOARD

External thermal insulation panel made of Expanded Polystyrene (EPS) with graphite additives as a radiation blocker and smooth edge.

Product variations:
Thermal Insulation
ETE 18/1016 ETE 18/1016
Datasheet
Share
Self-extinguishing, stabilised expanded polystyrene graphite-coated thermal insulation panel used in the DANOTHERM SATE system.

Presentation

  • Length (cm): 100
  • Width (cm): 50
  • Thickness (mm): 20
  • m² / package: 15
  • Surface (m²): 0.5
  • Colour: Graphite
  • Product code: 715334
DANOTHERM PLACA EPS GRAFITO

Technical Data

Concept Value Standard
Density (kg/m³) 15 (±10%) -
Water absorption long term (%) < 5 EN 12086
Thermal conductivity declared (W/mK) 0.031 EN 12667 / EN 12939
Compression strength (kPa) 65 EN 826
Flexural strength (kPa) 90 EN 12089
Dimensional Stability (%) DS (23,90) EN 1603
Water vapour permeability (µ) 30-70 EN 12086
Reaction to fire E EN 13501-1
Squareness (mm/m) 2 EN 824
Traction resistance perpendicular of the faces (kPa) 100 EN 1607
Thermal Resistance (m²K/W) 0,6 -
Width Tolerance (± mm) 2 EN 822
Thickness tolerance (mm) 2 EN 823
Length tolerance (± mm) 2 EN 822

Addtitional Technical Data
