DANOTHERM EPS BOARD

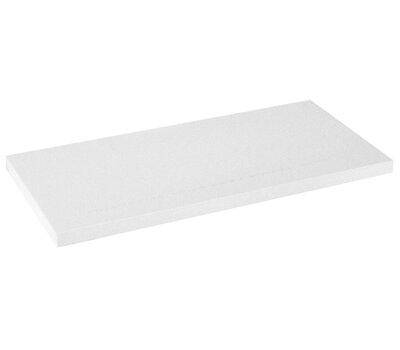

Panel for external thermal insulation made of Expandable Polystyrene (EPS) with smooth edge.
Product variations:
ETE 18/1016
Stabilised and self-extinguishing expanded polystyrene thermal insulation panel used in the DANOTHERM SATE system.
Indications and Important Recommendations
- Check the continuity of the insulation, avoiding thermal bridges such as: outline of openings, perforations, perimeters, parapets, slabs, pillars, etc.
- Check for the existence of a voluntary quality mark, if stated in the project.
- Check for CE marking and Declaration of Performance.
- Check that the thermal insulation is as specified in the project.
- Check that the product has arrived on site in its original packaging, duly labelled and in perfect condition.
- Check that the installation corresponds to the project definition, in particular the order of the layers of each enclosure and the correct position of the insulation layer in relation to the others.
- Check compliance with the project specifications in terms of dimensions, thickness, declared thermal conductivity, declared thermal resistance, water vapour diffusion resistance factor and reaction to fire.
Handling, storage and preservation
- It is necessary to keep the plates away from sources of heat or flames. They contain a flammability retarding additive to inhibit accidental ignition from a small fire source, but plates are combustible and can burn quickly if exposed to intense fire. All fire classifications are based on small-scale tests and may not reflect the reaction of the material under actual fire conditions.
Notice
- The information contained in this document and any other advice provided, are given in good faith, based on DANOSA's current knowledge and experience when products are properly stored, handled and applied, in normal situations and in accordance with the recommendations of DANOSA. The information applies only to the application (s) and the product (s) to which reference is expressly made. In case of changes in the parameters of the application, or in case of a different application, consult the DANOSA Technical Service before using the DANOSA products. The information contained herein does not exonerate the responsibility of the building agents to test the products for the application and intended use, as well as their correct application in accordance with current legal regulations. The product images used in our communications are indicative and may differ slightly in color and aesthetic appearance in relation to the final product.Orders are accepted in accordance with the terms of our current General Sales Conditions.DANOSA reserves the right to modify, without prior notice, the data reflected in this documentation.Website: www.danosa.com E-mail: info@danosa.com Telephone: +34 949 88 82 10
Presentation
- Length (cm): 100
- Width (cm): 50
- Thickness (mm): 140
- Product code: 715060
Technical Data
Concept | Value | Standard |
---|---|---|
Density (kg/m³) | 14 | - |
Thermal conductivity declared (W/mK) | 0.036 | - |
Reaction to fire | E | EN 13501-1 |
Squareness (mm/m) | 2 | EN 824 |
Traction resistance perpendicular of the faces (kPa) | 210 | - |
Width Tolerance (± mm) | 1 | EN 822 |
Thickness tolerance (mm) | 1 | EN 823 |
Length tolerance (± mm) | 1 | EN 822 |
