DANOTHERM MECHANICAL FIXINGS

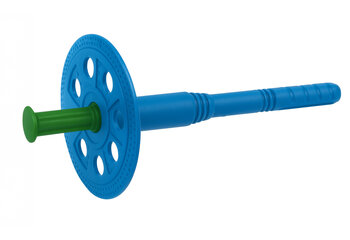

SGR expansion plug for fixing thermal insulation. Certified ETAG 014

Product variations:

Description Technical features and measures

Polypropylene expansion plug with a diameter of 8 mm for fixing insulating panels in the DANOTHERM® SATE external thermal insulation system. With approval ETA06-0242 according to ETAG014 for use category B (solid brick) and C (hollow brick).

Installation video

Instruction for Use

24-48 hours after fixing the insulation boards to the facade with the adhesive ARGOTEC® Fixtherm Élite or ARGOTEC® Fixtherm Élite Netzero, drill a hole in the substrate through the insulation board using a drill. The drill bit must have a diameter of 8 mm and the depth of the hole in the substrate must be at least 35 mm, taking into account the adhesive thickness and the depth of penetration into the substrate.
Insert the anchor plug into the hole until it rests on the insulation board.
With the help of a mallet, tap the anchor so that it is flush with the insulation.
Lay 6 pcs/m² in general, for which it is sufficient to place one anchor plug at each junction of two or three insulation boards.
